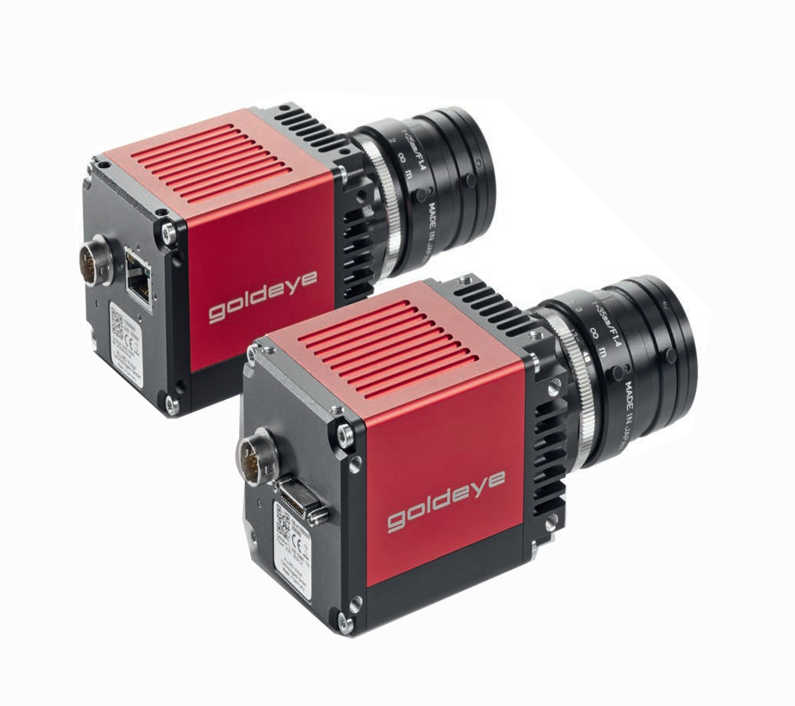

AVT紅外相機的產品參數介紹

型號

GOLDEYE
CL-008 COOL TEC1

GOLDEYE
CL-008 TEC1

GOLDEYE
CL-032 COOL TEC2

GOLDEYE
CL-032 TEC1

GOLDEYE
CL-033 TEC1

GOLDEYE
CL-033 TECLESS

接口

Camera Link Base

Camera Link Base

Camera Link Base

Camera Link Base

Camera Link Base

Camera Link Base

分辨率

320 (H) × 256 (V)

320 (H) × 256 (V)

636 (H) × 508 (V)

636 (H) × 508 (V)

640 (H) × 512 (V)

640 (H) × 512 (V)

傳感器

InGaAs FPA 320 × 256

InGaAs FPA 320 × 256

InGaAs FPA 636 × 508

InGaAs FPA 636 × 508

InGaAs FPA 640 × 512

InGaAs FPA 640 × 512

傳感器類型

InGaAs

InGaAs

InGaAs

InGaAs

InGaAs

InGaAs

傳感器尺寸

No standard size

No standard size

No standard size

No standard size

No standard size

No standard size

像元尺寸

30 μm × 30 μm

30 μm × 30 μm

25 μm × 25 μm

25 μm × 25 μm

15 μm × 15 μm

15 μm × 15 μm

Lens mounts (available)

C-Mount, F-Mount, M42-Mount

C-Mount, F-Mount, M42-Mount

C-Mount, F-Mount, M42-Mount

C-Mount, F-Mount, M42-Mount

C-Mount, F-Mount, M42-Mount

C-Mount, F-Mount, M42-Mount

最大滿幀幀率

344 fps

344 fps

100 fps

100 fps

301 fps

301 fps

ADC

14 Bit

14 Bit

14 Bit

14 Bit

14 Bit

14 Bit

緩存(RAM)

256 MByte

256 MByte

256 MByte

256 MByte

成像性能

暗噪聲

420 eˉ (Gain0), 170 eˉ (Gain1)

420 eˉ (Gain0), 170 eˉ (Gain1)

400 eˉ (Gain0), 170 eˉ (Gain1)

400 eˉ (Gain0), 170 eˉ (Gain1)

390 eˉ (Gain0), 53 eˉ (Gain1), 32 eˉ (Gain2)

390 eˉ (Gain0), 53 eˉ (Gain1), 32 eˉ (Gain2)

飽和電子數

2.5 Meˉ (Gain0), 170 keˉ (Gain1)

2.5 Meˉ (Gain0), 170 keˉ (Gain1)

1.9 Meˉ (Gain0), 39 keˉ (Gain1),

1.9 Meˉ (Gain0), 39 keˉ (Gain1),

1.2 Meˉ (Gain0), 84.8 keˉ (Gain1), 25 keˉ (Gain2)

1.2 Meˉ (Gain0), 84.8 keˉ (Gain1), 25 keˉ (Gain2)

動態范圍

75 dB (Gain0), 60 dB (Gain1)

75 dB (Gain0), 60 dB (Gain1)

73 dB (Gain0), 47 dB (Gain1),

73 dB (Gain0), 47 dB (Gain1),

69 dB (Gain0), 64 dB (Gain1), 59 dB (Gain2)

69 dB (Gain0), 64 dB (Gain1), 59 dB (Gain2)

輸出

Bit位數

8 - 14 Bit

8 - 14 Bit

8 - 14 Bit

8 - 14 Bit

8 - 14 Bit

8 - 14 Bit

黑白像素格式

Mono8, Mono12, Mono12Packed, Mono14

Tap Geometry 1X 1Y: Mono8, Mono12, Mono14; Tap Geometry   1X2 1Y: Mono8, Mono12

Tap Geometry 1X 1Y: Mono8, Mono12, Mono14; Tap Geometry   1X2 1Y: Mono8, Mono12

Mono8, Mono12, Mono12Packed, Mono14

通用輸入輸出口(GPIOs)

TTL I/Os

LVTTL I/Os: 1 input, 1 output

LVTTL I/Os: 1 input, 1 output

LVTTL I/Os: 1 Input, 1 Output

LVTTL I/Os: 1 Input, 1 Output

LVTTL I/Os: 1 input, 1 output

LVTTL I/Os: 1 input, 1 output

光耦 I/Os

1 input, 2 outputs

1 input, 2 outputs

1 input, 2 outputs

1 input, 2 outputs

1 input, 2 outputs

1 input, 2 outputs

RS232

115 200 Baud, 8N1 (adjustable)

115 200 Baud, 8N1 (adjustable)

115 200 Baud, 8N1 (adjustable)

115 200 Baud, 8N1 (adjustable)

115 200 Baud, 8N1 (adjustable)

115 200 Baud, 8N1 (adjustable)

工作條件/尺寸

工作溫度

負20 °C to +55 °C (case)

負20 °C to +55 °C (case)

負20 °C to +55 °C (case)

負20 °C to +55 °C (case)

負20 °C to +55 °C (case)

負20 °C to +55 °C (case)

電源要求 (DC)

10.8 V to 30.0 V

10.8 V to 30.0 V

10.8 V to 30.0 V

10.8 V to 30.0 V

10.8 V to 30.0 V

10.8 V to 30.0 V

功耗

10.5 W (at 12 VDC)

10.5 W (at 12 VDC)

19 W (at 12 VDC)

10 W at 12 VDC

11.8 W at 12 VDC

6.0 W (at 12 VDC)

重量

760 g (with C-Mount adapter)

320 g (with C-Mount adapter)

780 g (with C-Mount adapter)

340 g (with C-Mount adapter)

350 g (with C-Mount adapter)

320 g (with C-Mount adapter)

尺寸(L × W × H in mm)

90 × 80 × 80

78 × 55 × 55

90 × 80 × 80

78 × 55 × 55

78 × 55 × 55

78 × 55 × 55

符合規范

CE: 2014/30/EU (EMC), 2011/65/EU, incl. amendment   2015/863/EU (RoHS); FCC Class B

CE: 2014/30/EU (EMC), 2011/65/EU, incl. amendment   2015/863/EU (RoHS); FCC Class B

CE: 2014/30/EU (EMC), 2011/65/EU, incl. amendment   2015/863/EU (RoHS); FCC Class B

CE: 2014/30/EU (EMC), 2011/65/EU, incl. amendment   2015/863/EU (RoHS); FCC Class B

CE: 2014/30/EU (EMC), 2011/65/EU, incl. amendment   2015/863/EU (RoHS); FCC Class B

CE: 2014/30/EU (EMC), 2011/65/EU, incl. amendment   2015/863/EU (RoHS); FCC Class B
